Most Competitive Drill Machine Diamond Core PDC Bit 100m Hydraulic Drill Rig Tractor Water Well Drilling Rig

Most Competitive Drill Machine Diamond Core PDC Bit 100m Hydraulic Drill Rig Tractor Water Well Drilling Rig

1. Product introduction GZ100T water well drilling rig is optimized and improved by our company on the basis of the orig
Basic Info
Model NO. GZ100T
Drill Hole Depth 200-250m
Bit Type Cone Bit
Drilling Way Rotary
Name Water Well Drill Rig
L*W*H 3.4*1.5*2.2m
Moving Way Hydraulic Tractor
Drill Bit Type PDC Bit/Roller Bit/Diamond Drill
Weight 3t
Feature Portable, High Drilling Efficiency
Transport Package Export Package
Specification 4 cubes
Trademark pearldrill
Origin Hunan, China
Production Capacity 100
Product Description

1. Product introduction GZ100T water well drilling rig is optimized and improved by our company on the basis of the original drilling rig products, combined with the new characteristics of the current domestic drilling technology. In the case of the original drilling parameters, this model adopts system integration technology to reduce the volume of the whole machine, and has the characteristics of small turning radius, flexible walking and high safety, which can better adapt to the development of drilling technology. at home and abroad. need.2. Product technical features GZ100T water well drilling rig is a new type of water well drilling rig newly developed by our company. The drilling rig combines the technical characteristics of my country's underground soil and rock formation drilling, and organically combines the hydraulic integration technology with the traditional technology, so that the functional modules of the drilling rig are clear and the performance is excellent. Advanced and reliable, harmonious relationship between man and machine, excellent operating environment. The GZ100T water well drilling rig is powered by a diesel engine and adopts a hydraulic system driven by full hydraulic pressure; the machine movement, displacement, and displacement system adjust the drilling angle and orientation through the tire-type chassis walking system; the rotation of the drill pipe is driven by a low-speed high-torque motor to propel The hydraulic cylinder is used for propulsion, and the advantages of similar products at home and abroad are comprehensively utilized. Its main structure and functional characteristics are as follows: (1) Functional modular design, compact structure, small overall size, the whole machine is 1500mm wide, 2200mm high and 3400mm long. It is directly transported to the designated middle section through the 3# hanging cage, without the need to disassemble the whole machine, the transfer is convenient, the roadway passability is good, and the stope adaptability is strong. (2) One-piece chassis structure, good bearing capacity, reliable and durable. Tire walking, hydraulic wet braking, high traction, strong climbing ability and small turning radius.Data acquisition system while drilling. The parameters of the drilling rig can be adjusted steplessly according to the rock conditions and drilling depth, which is convenient for adjustment and control, and greatly improves the driving ability, stability and overload resistance of the main working mechanisms such as rotation and propulsion.The deepest drilling depth can reach 100M, and the maximum drilling diameter is 300MM. -PRODUCT BRIEF-

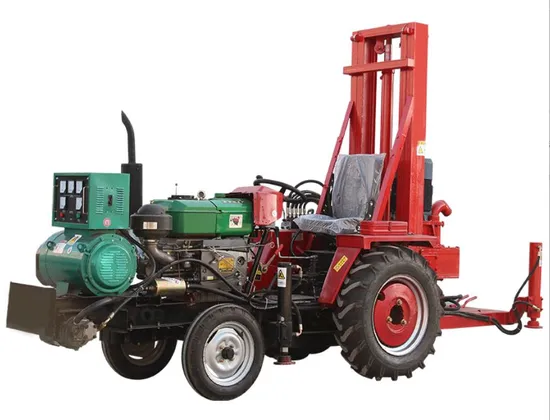

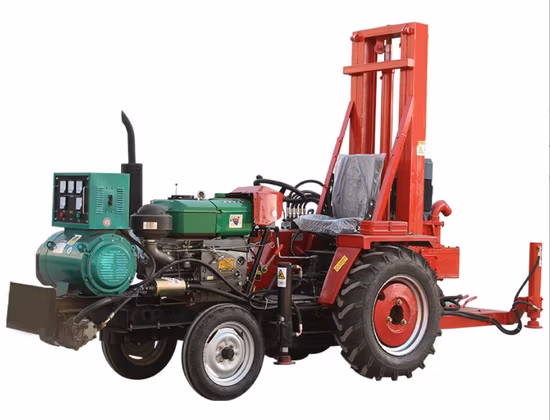

Product DescriptionGZ100T tractor water well drilling rig is a new model independently developed and produced by our factory on the basis of learning from the advanced technology of similar models at home and abroad;The drilling rig has reasonable design, complete supporting facilities, superior performance, convenient operation and convenient maintenance;The machine is driven by a diesel engine and runs on four wheels; the power head is driven by a low-speed and high-torque motor, with stepless speed regulation, and the structure is advanced and simple; the double-speed feeding system of the oil cylinder wire rope makes the movement stable and reliable; the center of gravity of the whole machine is low, and the stability is good; the overall shape is beautiful , reflecting the people-oriented design concept;The main parts of the drilling rig adopt the optimized procurement policy at home and abroad, and the diesel engine, hydraulic pump, main valve, motor and key hydraulic parts are all selected from well-known brand products;The large torque, high power configuration, reasonable structure design and advanced operation mode of the drilling rig ensure the efficient construction of the drilling rig;The low pollution emission and professional noise reduction design of the rig diesel engine make the rig fully applicable to various construction sites;The machine is beautiful in appearance, compact in structure, reliable in performance and flexible in operation, and is currently the first choice for medium-sized projects in the domestic vehicle-mounted drilling rig market;The drilling rig can drill in quaternary formations such as clay layer, sand layer, weathered rock, bedrock and so on. The drilling rig is mainly used for hydrogeological investigation, drilling of industrial and agricultural water wells, construction of underground tunnels and ventilation holes, especially the drilling of geothermal heating holes. It can be constructed by various techniques such as air drilling and foam rotary drilling.Product Specifications

Product numberGZ100T
Maximum hole depth100M
Drilling diameter75MM--300MM
Working wind pressure1-3.45MP
Total gas consumption16-30 m3/min
Drill pipe length3M
Drill pipe diameter50-89MM
Axial pressure6T
Lifting force20T
Swing torque2000-7000Nm
Rotation speed0-80 rpm
Supporting power50kw/FAW Engineering Engine
Bearing methodHydraulic all-steel chassis
Walking speedquick
Gradeability16.
Dimensions3.8*1.7*2.2M
Total Weight3T

Most Competitive Drill Machine Diamond Core PDC Bit 100m Hydraulic Drill Rig Tractor Water Well Drilling Rig

Most Competitive Drill Machine Diamond Core PDC Bit 100m Hydraulic Drill Rig Tractor Water Well Drilling Rig

What we offer:1) Good quality control2) Highly competitive prices 3) state-of-art technology products4)Our well drilling rig sales in China first, China's largest well drilling rig manufacturer5) Smooth communication



WHY CHOOSE SPEEDMADE INDUSTRIES?

1.Our propose is to supply the most suitable borehole drilling machine to users.You can get a full range of product selection advice and product customization without paying any fees.2.We have two special groups of design teams. One team of after-sales engineers with more than 30 years of construction experience at home and abroad, other team of designers who graduated from well-known universities and have rich work experience. We will combine a wealth of practical construction experience and the most advanced professional theoretical knowledge to meet your various demands.3.We are not only familiar with borehole drilling rig, but also familiar with the human environment, construction environment and strata in the construction field at home and abroad. Provide you with the greatest technical support, save costs and create the greatest value with you. Yes, choosing us is your best decision.4. Support overseas train and maintain. We do ten days overseas train for free,after you buy our machine.5. One year Warranty. Speedmade knows the various needs of the water well service companies and operators worldwide.Customers who buy rigs from us can benefit from great saving thus boost their bottom line.

FACTORY SHOW


Most Competitive Drill Machine Diamond Core PDC Bit 100m Hydraulic Drill Rig Tractor Water Well Drilling Rig

-APPLICATION RANGE-

Apply to:Water Well Drilling/civil engineering and infrastructure/for rock core drilling/geological coring exploration/Soil Testing and sampling /geophysical survey/mineral exploration and other industries.

Most Competitive Drill Machine Diamond Core PDC Bit 100m Hydraulic Drill Rig Tractor Water Well Drilling Rig

-PAYMENT-

DIY customization: please provide your rock formation information or detailed size drawings.

Free samples: some samples can be provided free of charge.

Trading:EXW, FOB, CFR, CIF, DDU such as.

Payment:T/T L/C,D/A,D/P,Western Union,MoneyGram.

Delivery time: normally 7-12 days

Most Competitive Drill Machine Diamond Core PDC Bit 100m Hydraulic Drill Rig Tractor Water Well Drilling Rig

-DELIVERY-

Delivery: there are four main delivery channels including air, sea, express and road transportation, which can be selected according to customers' different requirements.

Air freight logistics:DHL/UPS/EMS/TNT/ FEDEX,etc.

-PACKAGING STYLE-

-EDLIVERY-

-AFTER-SALES SERVICE-

Dear User:

Welcome you to choose and use our products correctly!

The geological drill bit produced by our company has a 6-month warranty period.In case of abnormal scrap such as sheet falling, steel body cracking, lamination of composite sheet, etc., the company may make compensation if the situation is confirmed by the quality department of the company.

If it is one of the phenomena listed in the following table, it shall be deemed as normal scrapping, and the company shall not compensate for it:

1.Drop: Wear no more than 10%, send back for replacement, wear no more than 50%, depending on the situation, steel body cracking: wear no more than 30%, send back for replacement; Wear more than 50%, such as artificial improper crack, do not change.

2.Wrong size or thread: New back for new.

3.Weak solder joints, broken wing pieces, etc. : wear not more than 20%, send back for a new; Wear more than 50%, such as artificial improper operation, do not change.

4.The problem of lamination of composite slices: It depends.
